Home / Process solutions / T-TTM The technology of pseudocumene to mesitylene

T-TTM The technology of pseudocumene to mesitylene

The technique refers to the isomerization of pseudocumene in the catalyst to produce mesitylene.

Mesitylene is one of the important raw materials which widely used in the manufacture of antioxidants, herbicides, uv absorbent in rubber, m-tritoluidine, trimesic and other products.



The production methods of mesitylene include: heavy aromatics extraction and distillation separation, HF-BF3 extraction, sulfonation extraction and mesitylene isomerism extraction. At present, the C9 aromatics rectification and separation method is mostly used in industry, but the boiling point difference between mesitylene and o-methylethyl benzene is less than 0.5℃, so it is difficult and costly to get high purity mesitylene. The new developed process by Talos solves this problem very well.

Suitable Feedstock

Mesitylene, pseudocumene or C9 aromatics containing mesitylene

Physicochemical properties of supporting catalysts

Item

Specification

Shape

White stripe

Specific surface area m2/g

≥320

Strength N/cm

>80

Diameter mm

Φ1.8-2.2

Bulk density g/mL

550-650

 Nickel content %

0.5~1.0

Molybdenum content %

0.5~1.5

Process Conditions

Item

Specification

Temp. ℃

260-330

Pres. MPa

1.0-2.0

Flow rate h-1

1.0

Gas and liquid ratio V:V

200~500

The advantage of the technology

Using hydrogen isomerism, the catalyst life is long; With high selectivity and no methyl ethylbenzene in the product, it is easy to get high purity mesitylene.

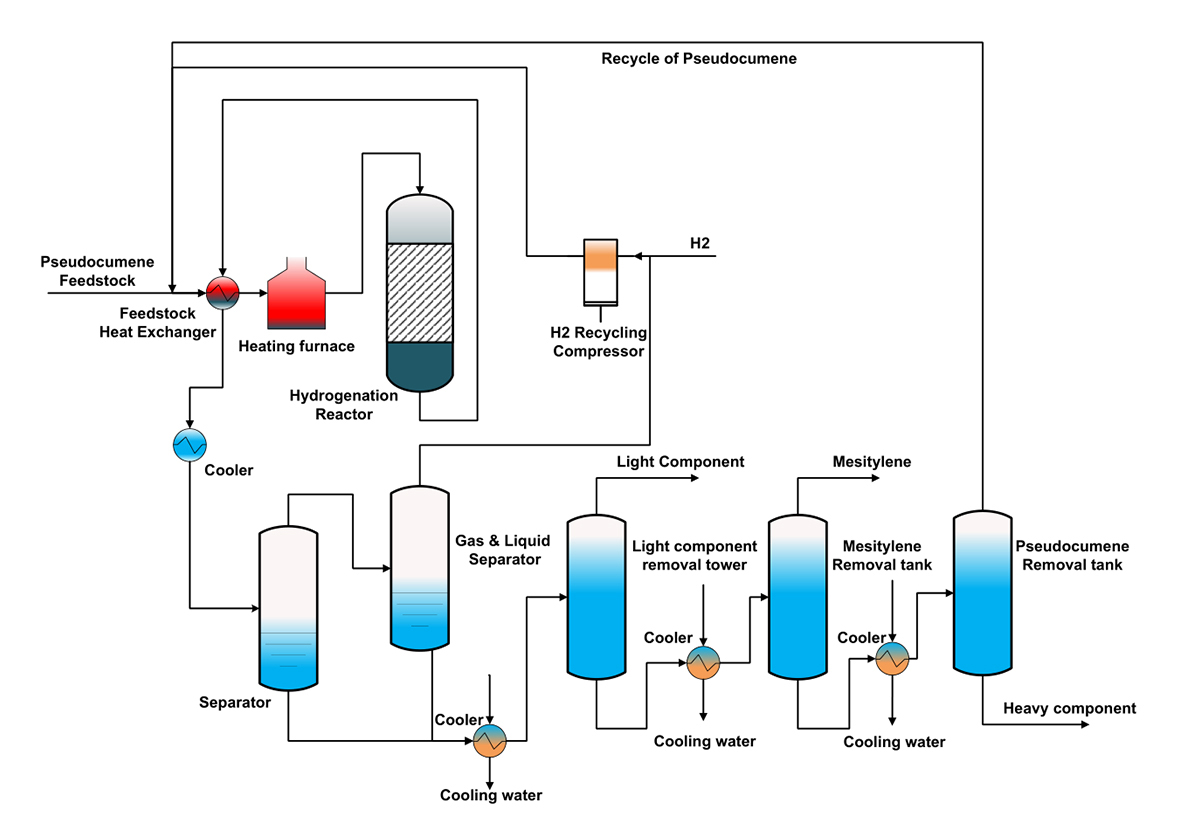

T-TTM Process Reference PFD
