T-PHI C5/C6 isomerization technology

While increasing amount of global countries are proposing and advocating the concept of ‘Clean Gasoline’, the proportion of C5/C6 iso-alkane gasoline in market is growing rapidly. C5/C6 iso-alkane is a clean blend of gasoline with high octane number, aromatics free and olefin free. The main function of this technology is to form C5/C6 isomerized alkanes by catalyzing C5/C6 normal alkanes.

Suitable Feedstock

C5/C6 components in condensate, naphtha, reforming extractor, aromatics extractor and coal base naphtha

Physicochemical properties of supporting catalysts

Item

Medium temp. C5/C6 isomerism catalyst

Solid super acid C5/C6 isomerism catalyst

Low temp. C5/C6 isomerism catalyst

Shape

Strip

Strip

Strip

Carrier

Molecular sieve

Metallic oxide

Aluminium oxide

Density g/cm3

0.55-0.65

0.8-1.5

0.55-0.65

Strength N/cm

>80

>40

>80

Active component

Pd or Pt

Pt

Pt

Process Conditions

Item

Medium temp. C5/C6 isomerism

Solid super acid C5/C6 isomerism

Low temp. C5/C6 isomerism

Temp. ℃

240-300

150-220

110-160

Pres. MPa

2.0

2.0-3.0

2.0-3.0

Flow rate h-1

1.0-1.2

1.0-1.2

1.0-1.2

Hydrogen/oil ratio v:v

≮200

≮200

≮200

The advantage of the technology ：

T-PHI technology has the advantages of high liquid yield and high-octane number. To satisfy customers with different needs, the process will be very flexible to be customized with different catalyst.

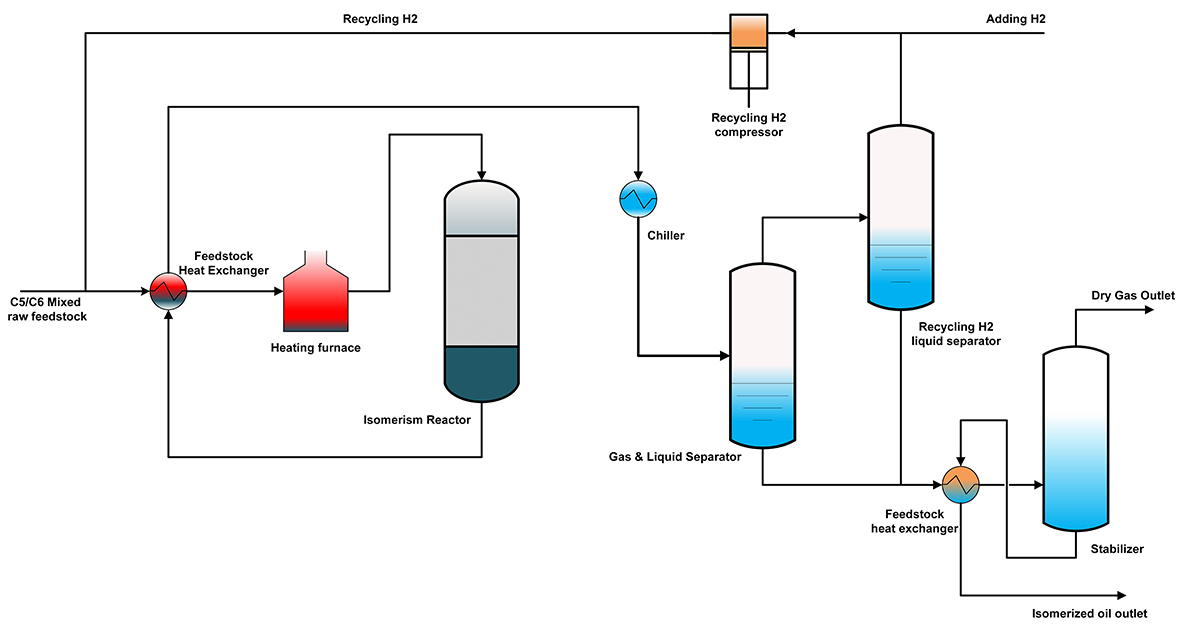

T-PHI Process Reference PFD
